PDC22 Pyle Pro Direct Box Balanced/Unbalanced

Out of Stock
$2699
MSRP
  • PDC22
  • 68888904117

To see wholesale price

Become a Dealer

Already a dealer? Sign In

Features

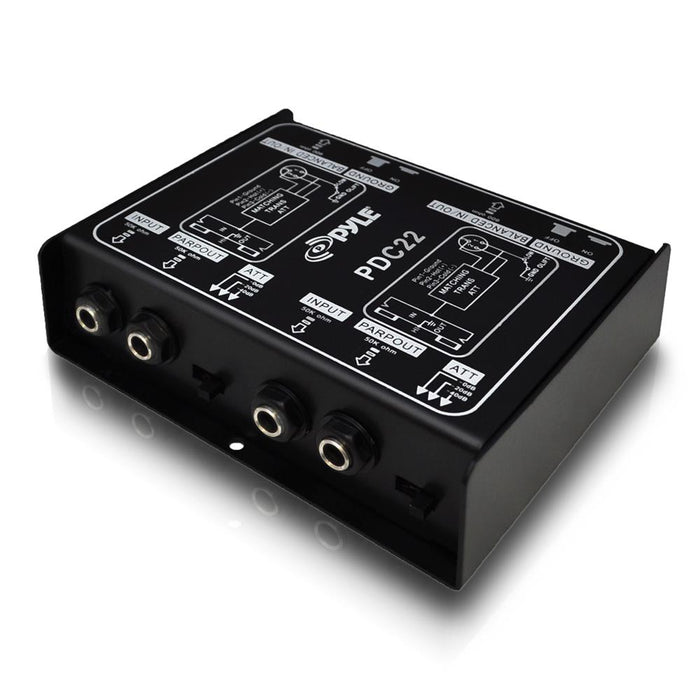

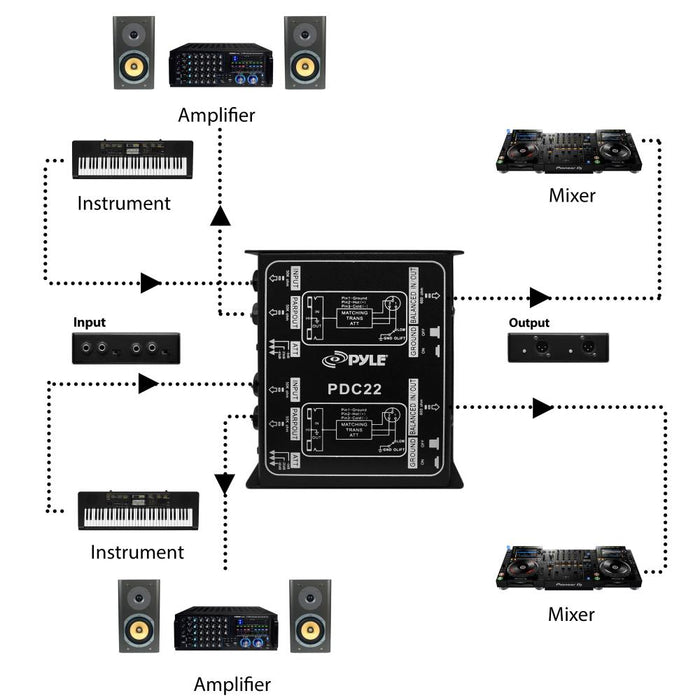

Professional High-Performance Dual Passive DI-Box - 1/4'' Instrument To Balanced & Unbalanced (1/4''/XLR) Direct Box Enabling easy interfacing and connection between various audio gear in numerous applications.

  • Two High-Quality Direct Boxes In One Convenient Enclosure
  • Enables to Tap Off the Signals from Amplifiers such as Guitar or Power Amplifier
  • Provides the Facility for the Direct Insertion of an Audio Signal into Mixer or Recorder
  • 1/4 Device Connector
  • Ultra-low Noise and Distortion
  • Connects All Kinds of Audio Signals like Guitars, Keyboards, etc.
  • Suitable for Outboard Signal Processors & High-Powered Speaker
  • Enables to Tap Off the Signals w/out Affecting the Original Sounds
  • Useful for Connecting Unbalanced Signals from Sources like Signals DJ and Sub Mixers
  • Provides a Clean Signal at a Low Level
  • Plug-in Guitar Directly into the PA System
  • Easy to Use Passive Electronic Device Controls Hum and Buzz from Stage with the Ground Lift
  • Heavy Duty 14 Gauge Steel Construction
  • Bi-Directional Impedance Matching

Specifications

  • Frequency Response: 5-35 KHz, -3dB
  • Noise Level: -104dBu
  • THD: 0.013%
  • Input Impedance: 50K Ohm
  • Max.Input Level: +8.1 dBu (9V Batt), +11.3 dBu (48V Phantom)
  • Instrument Input: 1/4'' Phone Jack, unbalanced
  • Parallel (link) Out: 1/4'' Phone Jack, unbalanced
  • Balanced Output: XLR Connector, balanced
  • Ground Lift: Switch-Able Ground Lift
  • Input Attenuation: Switch-Able (0db, -20db,-40db)
  • Construction Material: All Steel Chassis
  • Product Dimensions: 5.51'' x 4.72'' x 1.57'' -inches
  • Sold as: Unit
  • Weight: 1.26 lbs.

Professional High-Performance Dual Passive DI-Box - 1/4'' Instrument To Balanced & Unbalanced (1/4''/XLR) Direct Box Enabling easy interfacing and connection between various audio gear in numerous applications.

  • Two High-Quality Direct Boxes In One Convenient Enclosure
  • Enables to Tap Off the Signals from Amplifiers such as Guitar or Power Amplifier
  • Provides the Facility for the Direct Insertion of an Audio Signal into Mixer or Recorder
  • 1/4 Device Connector
  • Ultra-low Noise and Distortion
  • Connects All Kinds of Audio Signals like Guitars, Keyboards, etc.
  • Suitable for Outboard Signal Processors & High-Powered Speaker
  • Enables to Tap Off the Signals w/out Affecting the Original Sounds
  • Useful for Connecting Unbalanced Signals from Sources like Signals DJ and Sub Mixers
  • Provides a Clean Signal at a Low Level
  • Plug-in Guitar Directly into the PA System
  • Easy to Use Passive Electronic Device Controls Hum and Buzz from Stage with the Ground Lift
  • Heavy Duty 14 Gauge Steel Construction
  • Bi-Directional Impedance Matching
  • Frequency Response: 5-35 KHz, -3dB
  • Noise Level: -104dBu
  • THD: 0.013%
  • Input Impedance: 50K Ohm
  • Max.Input Level: +8.1 dBu (9V Batt), +11.3 dBu (48V Phantom)
  • Instrument Input: 1/4'' Phone Jack, unbalanced
  • Parallel (link) Out: 1/4'' Phone Jack, unbalanced
  • Balanced Output: XLR Connector, balanced
  • Ground Lift: Switch-Able Ground Lift
  • Input Attenuation: Switch-Able (0db, -20db,-40db)
  • Construction Material: All Steel Chassis
  • Product Dimensions: 5.51'' x 4.72'' x 1.57'' -inches
  • Sold as: Unit
  • Weight: 1.26 lbs.
