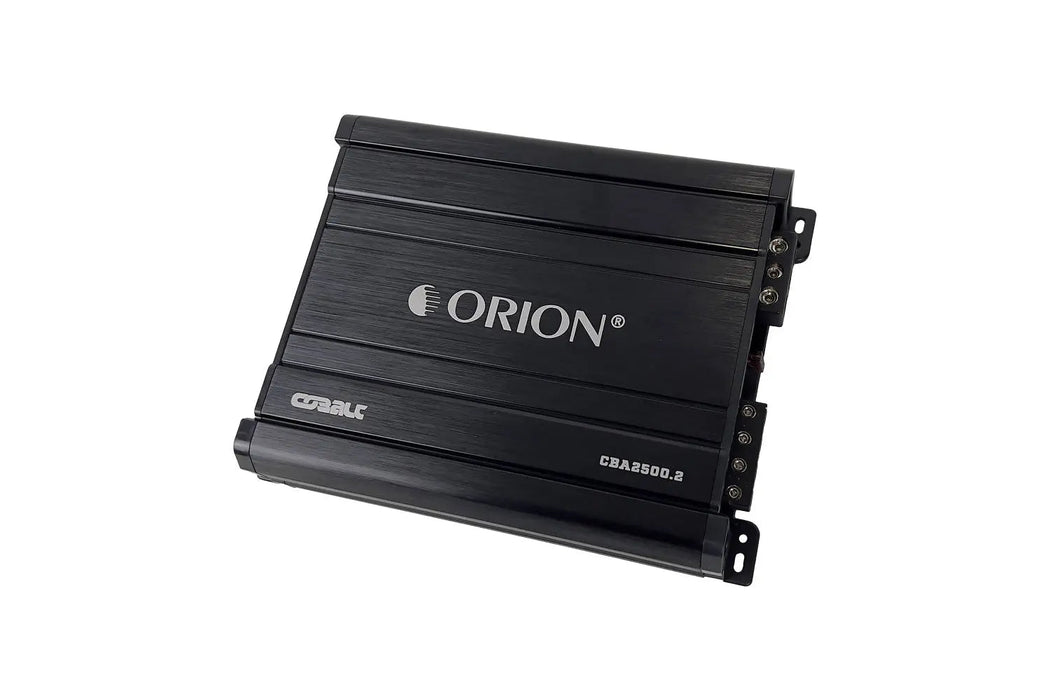

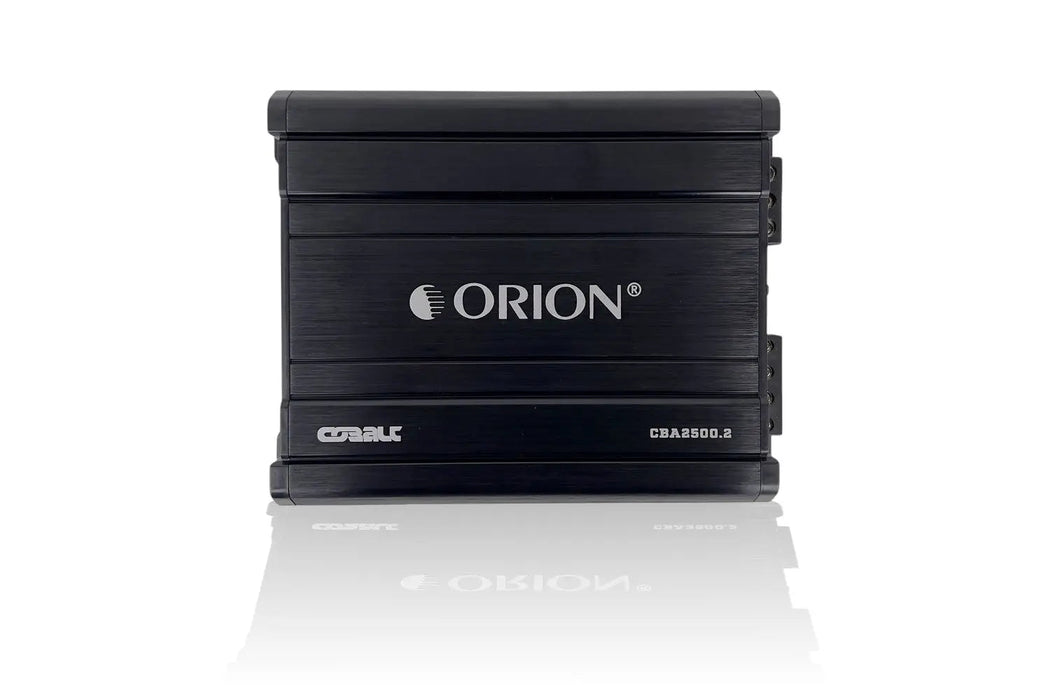

CBA2500.2 COBALT 2500 WATT MAX 2 CHANNEL CLASS A/B AMP

Features:

• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 2-Ohm Stable
• RCA Out Throughput
• 12dB Octave Low-Pass Filter
• Electronic Crossover Network
• Bass Boost Circuit
• Intelligent Power and Protection LED Indicator
• Soft Turn-on/Turn-off
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Specifications

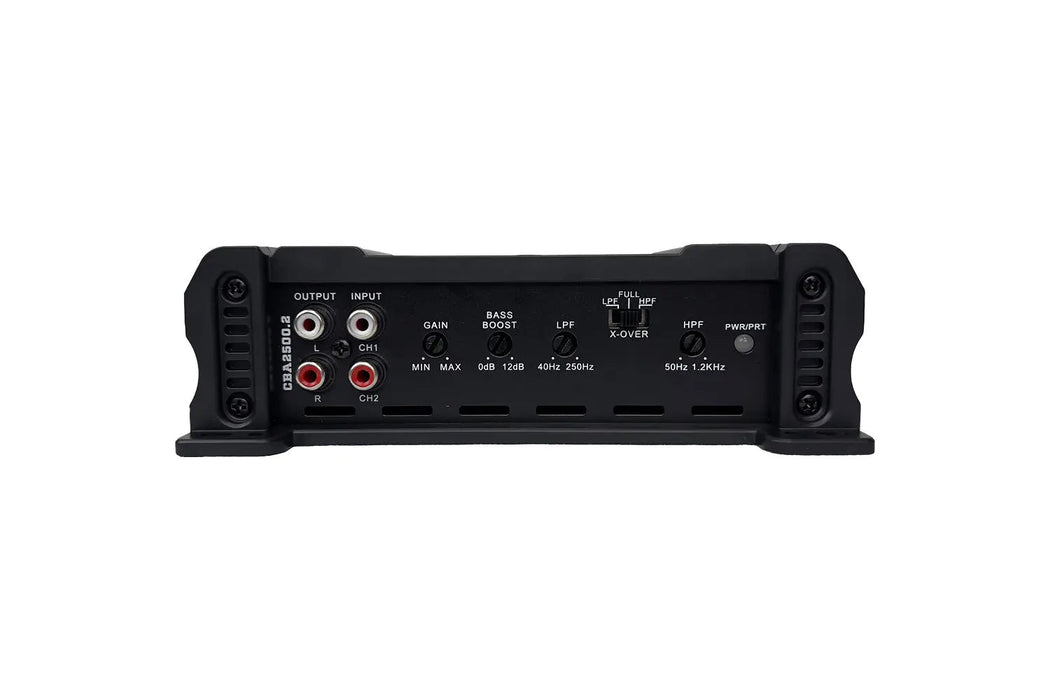

• Frequency Response: 10Hz - 30kHz

• High Pass Crossover Continuously variable (50-1.2kHz)

• Low Pass Crossover Continuously variable (40-250Hz)

• Supply Voltage: 9 - 16V

• Input Impedance: 22kOhm - Signal to Noise Ratio: >90dB

• Bass Boost: 0 - 12dB Variable

• Variable Input Level Control: 0.2V - 6.0V

• Fuses: 40A recommended (1 x 40A ATC)

• Dimensions (L x W x H): 9.41" x 7.09" x 2.13" (239x180x54mm)

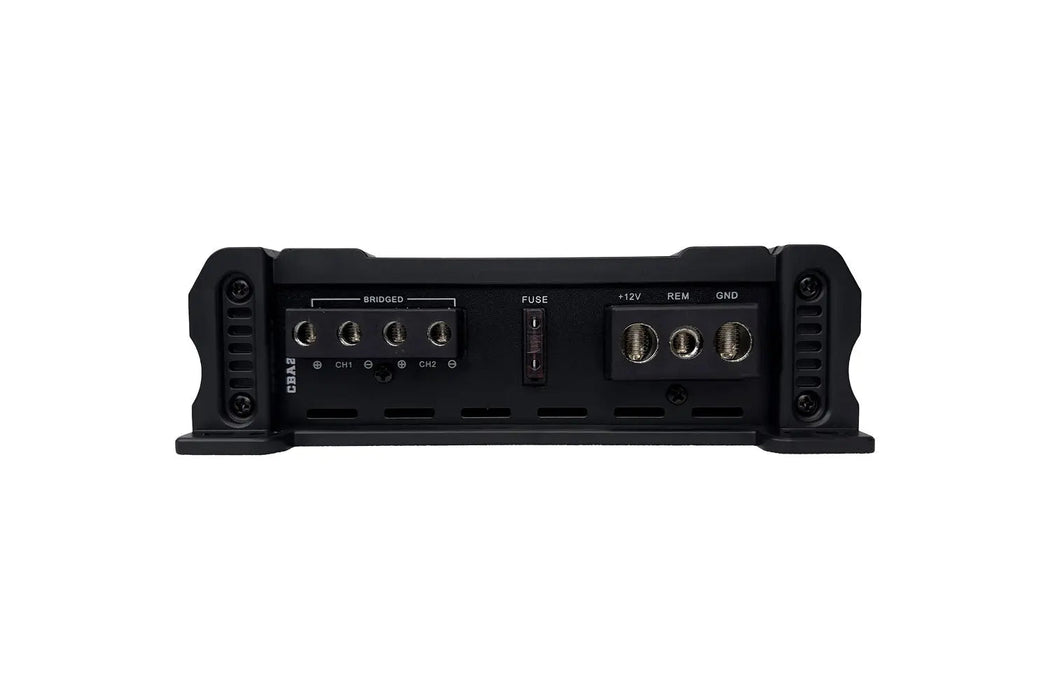

POWER TERMINAL MANAGEMENT

• Positive Terminals: 1 x 4 AWG.
• Negative Terminals: 1 x 4 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 10 AWG.
