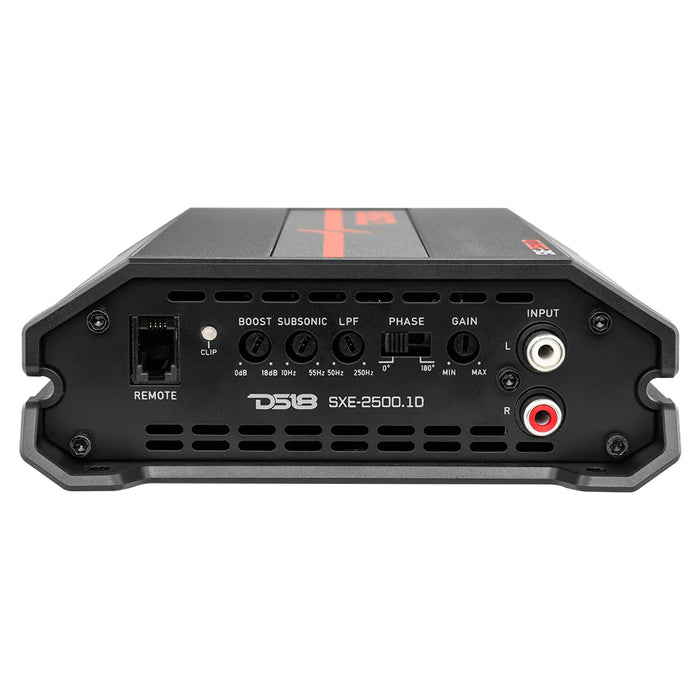

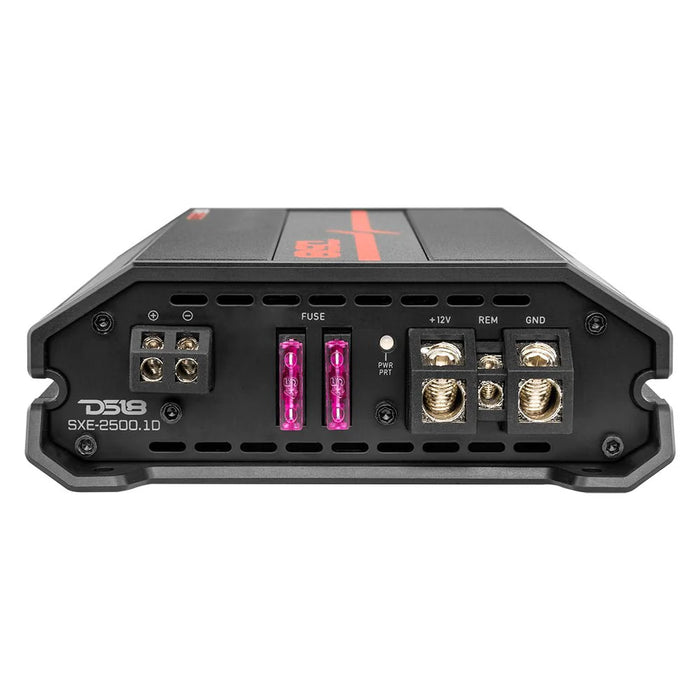

SXE-2500.1DBK DS18 Class D Monoblock 800w Black ^C

SXE-2500.1DBK SXE-Series Class D 1-Channel Amplifier 800 Watts RMS @ 1-Ohm

• Class D Subwoofer Monoblock 1 Channel Amplifier
• 1 ~ 4 Ohm Stable

• 1 x 800 Watts @ 1 Ohm

• Compact Design
• Peak Power:  2500W

• RMS Power @ 4 Ohm/14.4V:  350W

• RMS Power @ 2 Ohm/14.4V:  600W

• RMS Power @ 1 Ohm/14.4V:  800W

• Minimum Impedance:  1 Ohm

• Remote Level Control:  Yes

• Frequency Response:  20Hz - 500Hz

• Signal/Noise Ratio: >90dB

• Selectable X-Over:  Fixed LPF

• X-Over Low Pass Filter Range:  50Hz - 250Hz

• High Pass Filter:  N/A

• Bass Boost Range:  0 - 18dB

• Bass Boost Frequency:  50Hz

• Subsonic:  Yes

• Subsonic Frequency:  10 - 55Hz

• Efficiency @ 4 Ohm:  80%

• Damping Factor:  140

• THD %:  0.05

• Input Sensitivity:  0.2V - 6V

• High Level Input:  NO

• Phase Selector:  0-180

• Operation Voltage:  10 - 15V

• Led Indicator:  Power/Protect/Clip

• Voltage Input Protection:  Yes (16.5v)

• Clipping Protection:  Yes

• Thermal Protection:  Yes

• Cooling Fan:  NO

• Speaker Output Size:  12GA

• Power Input Size:  4GA

• Fuse Rating:  40A x 2

• Body Color / Finish:  Black

• Product Weight (lb):  4.5

• Product Dimensions L x W x H (Inches):  9.75 x 7.75 x 3.25

• M/C Weight (lb):  20.5

• M/C Dimensions L x W x H (Inches):  16.75 x 10.5 x 8.5

• M/C Qty:  5

• Sold in:  Single

DS18’s SXE Amplifier Series was designed for enthusiasts looking for an extreme increase to the quality of audio reproduced by their vehicle. With the SXE-2500.1D at the helm, your vehicle's subwoofers will unleash their true potential, effortlessly detailing the best parts of your favorite tracks.
The SXE-2500.1D offers you the ability to shape your systems audio to match your personal preferences. Its fully variable crossover, adjustable gain input sensitivity, and monoblock design allows you to fine-tune your audio, ensuring every beat, melody, and lyric is reproduced with astonishing accuracy. The compact size of the SXE-2500.1D enables easy installation anywhere in your vehicle, making it a versatile companion for your custom audio setup. Immerse yourself in a customized soundstage that complements your unique style.
Thanks to its Class D circuit design the SXE-2500.1D seamlessly integrates into any vehicle's custom build, without compromising on its power. Prepare to be blown away by the SXE-2500.1D's staggering performance, delivering 800W at 1-ohm, 600W at 2-ohm, and 300W at 4-ohm. These power settings are guaranteed to supercharge any custom build, leaving you with a smile that stretches from ear to ear.
The SXE-2500.1D also comes equipped with various forms of electronic protection, including thermal protection that shields against overheating, over-load protection, and short circuit output protection. Additionally, the 80℃ thermal protection ensures the amplifier operates optimally, even in demanding conditions. DS18 has thought of everything to guarantee a long-lasting and exceptional audio experience.
