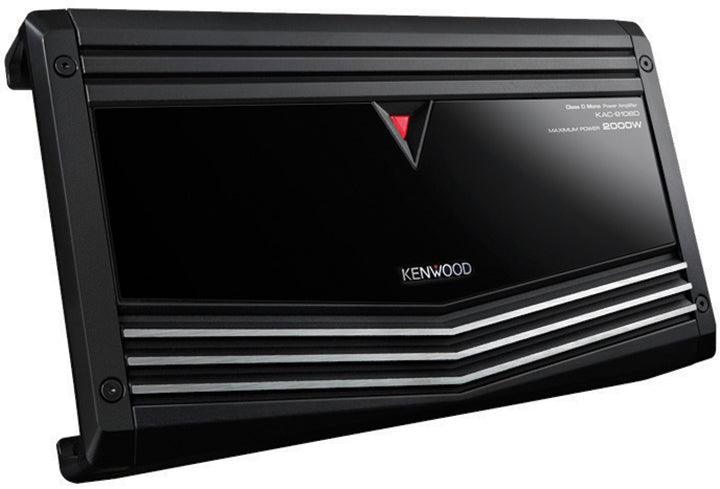

BN-KAC9106D Kenwood 2000 W Class D Mono Power Amp

Features

Amplifier Type: Class D

Power Output: 500Watts RMS x 1 at 4 Ohms

Signal-to-Noise Ratio: 76dBA (Reference: 1Watt into 4 Ohms)

Max Power: 2000W

Rated Power at 14.4V: 500Watts RMS x [ch], 1000Watts RMS x [ch]

Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)

Frequency Response: 20Hz-200Hz (+0dB, -3dB) Class D

Input Impedance: 10k ohm

Speaker Impedance: 4 Ohms (2 Ohms to 8 Ohms allowable)

Low-Pass Filter: Built in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct)

Infrasonic Filter: Built in Variable Infrasonic Filter (20Hz-50Hz,-24dB/oct)

Bass Boost : Built in Bass Boost Control (40Hz, 0dB-+18dB)

RCA Input Sensitivity: 0.2[V] - 5.0 [V]

Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]

Weight: 6.2 [lbs]

Current Consumption: 65 [A]

Class D

Terminal Cover

Line Output Terminals for Extension

Frequency Response : 5Hz-50kHz (+0dB, -3dB) Class AB

Input Impedance: 10k ohm

Speaker Impedance: 4Ohms (2Ohms to 8Ohms allowable)

Bridged connection 4Ohms to 8Ohms allowable

RCA Input Sensitivity: 0.2[V] - 5.0 [V]

Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]

Battery & Ground: Screw Type Terminal Block (Ni) (M6)

Speaker Output: Screw Type Terminal Block (Ni) (M4)

Line In: RCA (Ni)

Speaker Input: JST Connector

Operating Voltage: 14.4V (11-16V allowable)

CEA-2006 Compliant

2 Ohms Load Capability

Speaker Level Input

Signal Sensing Turn-on

Power MOS-FET Switching Power Supply

Cast Aluminum Heat Sink Design

Dimensions

Dimensions(WxHxD): 13-3/16 inch x 2-3/16 inch x 7-9/16 inch
