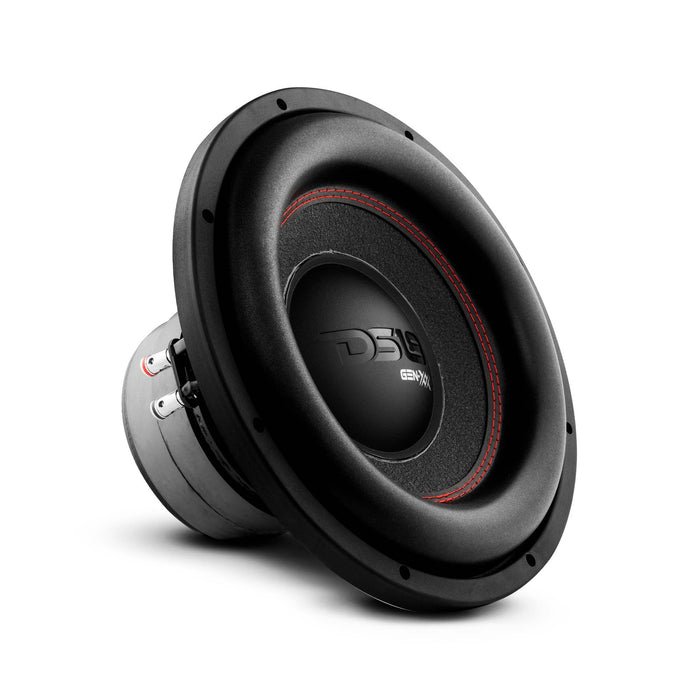

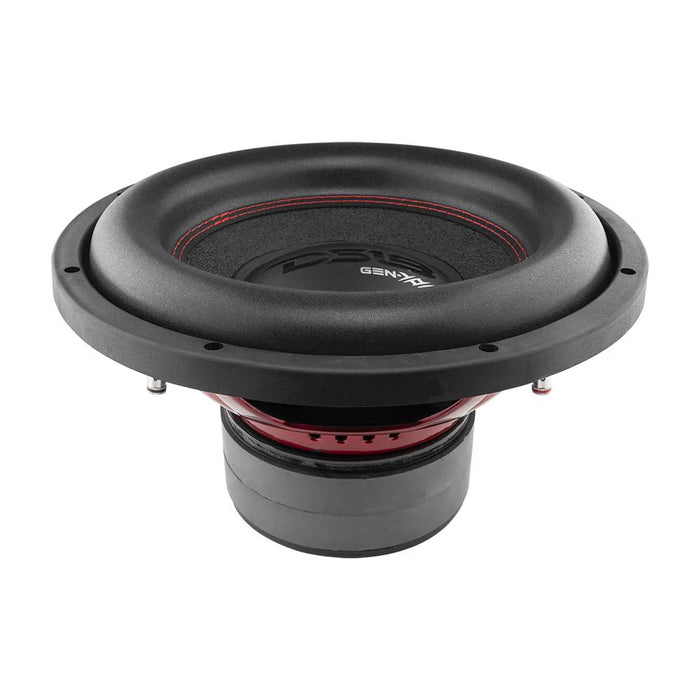

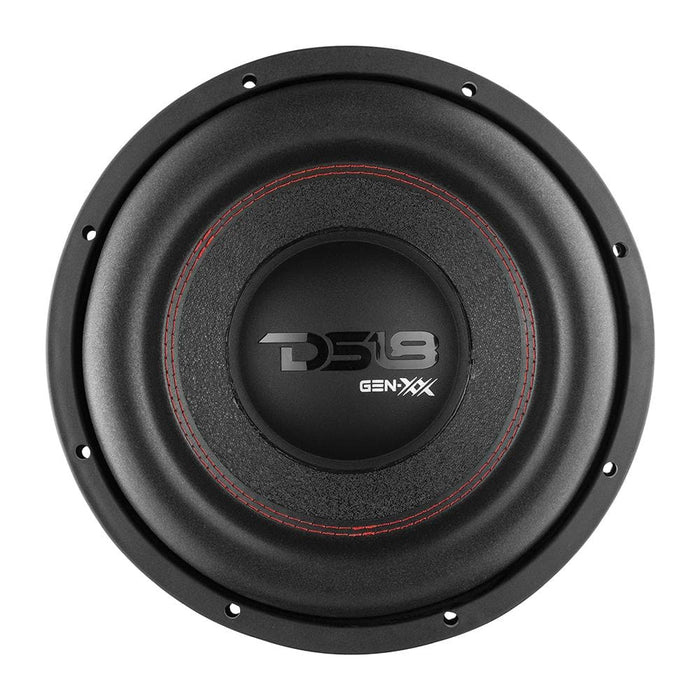

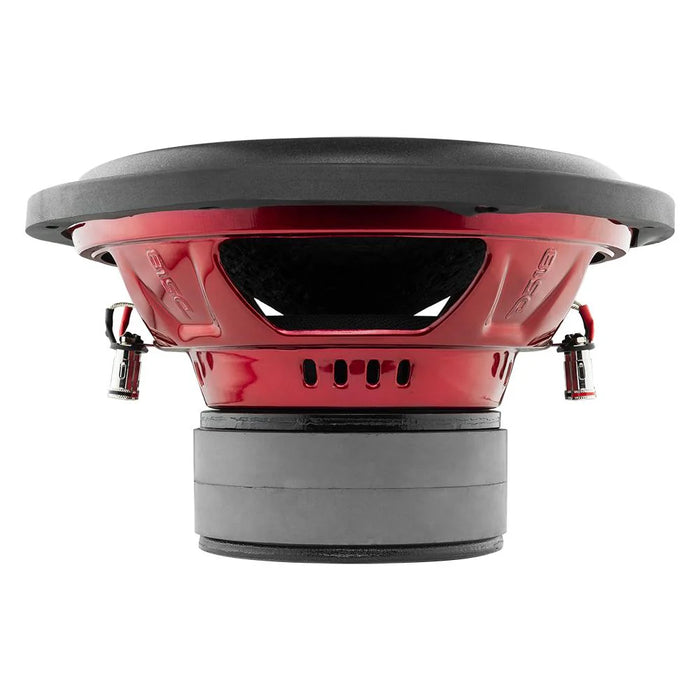

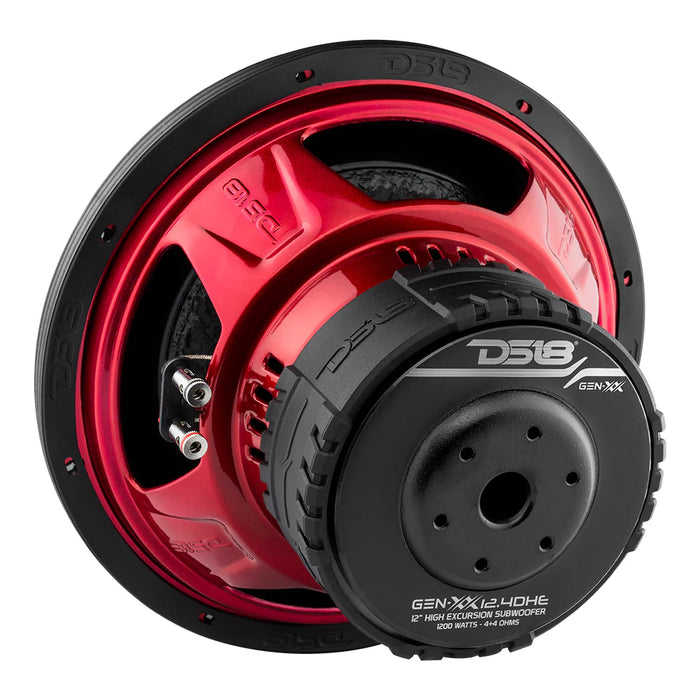

GEN-XX12.4DHE DS18 12 DVC 2X Stack 500w Sub Woofer

DS18 GEN-XX12.4DHE 12" High Excursion Car Subwoofer 1200 Watts 4-Ohm DVC Double Magnet
12" High Excursion Subwoofer
MAX Power: 1200 Watts
RMS Power: 600 Watts
Impedance: 4-Ohm 2" DVC
Ferrite Magnet
86.7dB

• Nominal Diameter: 12"

• Nominal Impedance: 4+4 Ohm

• RMS Power Handling: 600W

• Maximum Power Handling: 1200W

• Sensitivity (1w/1m): 86.7 dB

• Frequency Response: 20Hz - 1.5Khz

• Recommended Lo Pass Crossover: 80Hz

• Voice Coil Diameter: 2" / 50.8 mm

• Voice Coil Former Material: Black Aluminum

• Winding Material: SV

• Cone Material: Paper

• Dust Cap Material: PPI

• Surround Material: Foam

• Basket Material: Steel Baskset

• Basket Color/Finish: Glossy Red

• Magnet Material: Ferrite

• Magnet Weight: 136 oz

• Displacement Volume: 1.69L

THIELE & SMALL PARAMETERS

• Equivalent Volume Vas: 56.436 L

• Free Air Resonance Fs: 30.5 Hz

• Mechanical Factor Qms: 3.991

• Electrical Factor Qes: 0.532

• Total Factor Qts: 0.469

• Moving Mass Mms: 154.38g

• Compliance Cms: 0.175mm/N

• Bl Factor BI: 19.173N/A

• Voice Coil Inductance Le: 0.6741mH

• Diaphragm Area Sd: 475.29cm2

• DC Resistance Re: 3.2+3.2 ohms

• Efficiency Bandwidth Product EBP: 57.3

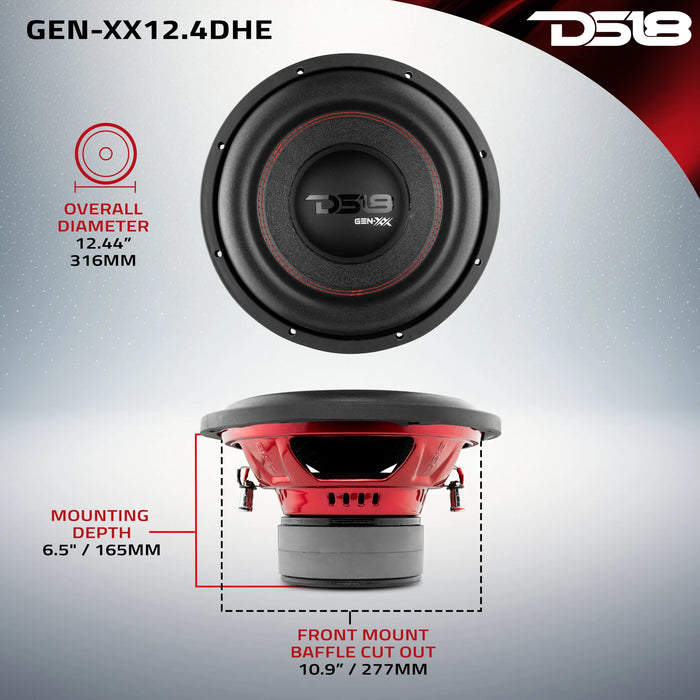

• Overall Diameter: 12.44" / 316mm

• Overall Depth: 7.6" / 193mm

• Front Mount Baffle Cutout: 10.9" / 277mm

• Mounting Depth: 6.5" / 165mm

• Motor Diameter: 6.14"/ 156 mm

• Gross Single Unit Weight: 19.5 Lbs.

• Dimensions W x L x H (Inches): 13.5 x 13.5 x 9

• Quantity of Units in Master Carton: 2

• Gross Master Carton Weight: 41.5 Lbs.

Introducing the DS18 GEN-XX12.4DHE, a game-changer in the world of car audio, offering unparalleled low-frequency performance at an affordable price. With the GEN-XX12.4DHE, you can now experience that heart-pounding sensation of concert-quality deep thumping bass right in the comfort of your car.
Crafted with the finest materials, the GEN-XX12.4DHE exemplifies professional quality and unmatched durability. The black aluminum voice coil former, paper cone, and foam surround work harmoniously to deliver exceptional performance and withstand the test of time. The glossy red steel basket adds a touch of elegance to your car's interior.
Featuring a remarkable power rating of 600W RMS and 1200W maximum, the GEN-XX12.4DHE doesn't require massive amounts of power to deliver a mind-blowing performance. You'll be able to shake the neighborhood and turn heads wherever you go without breaking the bank. The GEN-XX12.4DHE’s frequency response of 20Hz to 1.5KHz guarantees a wide range of bass reproduction, allowing you to hear every detail and nuance of your favorite tracks.
The long 2-inch voice coil and double magnet are specifically designed to ensure that every note is reproduced with exceptional clarity and precision. With a low FS of 30.5 Hz, the GEN-XX12.4DHE effortlessly reaches into the subsonic range, giving you the ability to experience those earth-shaking frequencies without any issues, if your box is correctly tuned.
Get ready to redefine what you thought was possible in car audio – the GEN-XX12.4DHE is here to make your dreams a reality.
