EPICFOUR AudioControl EPIC Series 4-Channel Class D 400w Amp

The AudioControl EPIC Series 4-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design. Engineered with a high-current Class D design, it’s 2Ω stable, ensuring maximum power output while maintaining efficiency. With a smart auto-reset protection circuit and solid power/speaker terminals secured by hex screws, the EPIC Series amplifier offers reliable, exceptional sound quality in a rugged, space-saving package.

Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.
Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.
Large Power and Speaker Terminals: Designed for maximum current flow. 4-Gauge Power and 8-Gauge Speaker
91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).
Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.
Output Over-Current Protection (OCP)
Input Over-Voltage Protection (OVP)
Input Under-Voltage Protection (UVP)
Output DC-Offset Protection (DCP)
Over-Temperature Protection (OTP)

• Compact High-Power Class D Amplifier

• High-Current Design – 2Ω Stable

• 4 x 100 Watts @ 4 ohms, Continuous Power (RMS) @ 14.4V

• 4 x 200 Watts @ 2 ohms, Continuous Power (RMS) @ 14.4V

• 2 x 400 Watts @ 4 ohms Bridged, Continuous Power (RMS) @ 14.4V

• Frequency Response (+/- 1 dB): 10 Hz – 22 kHz

• S/N Ratio: 90.1 dBa, Ref 100 Watts @ 4 ohms

• Line-Level Inputs: 500mV – 6V RMS

• Power / Ground Wire Gauge: 4 AWG

• Recommended Fuse Rating: 80 Amps

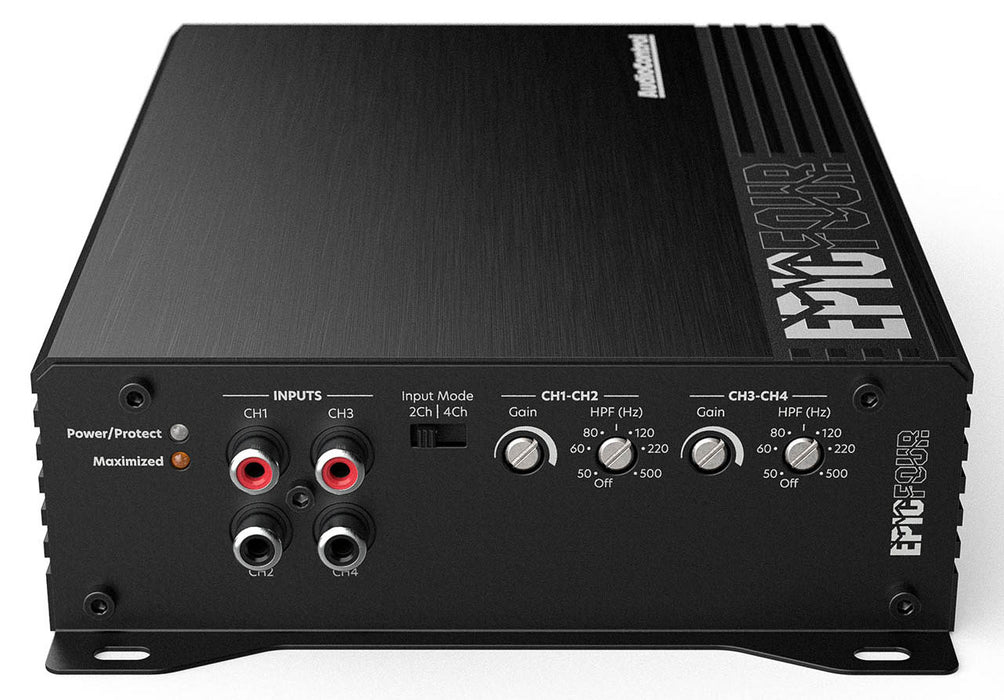

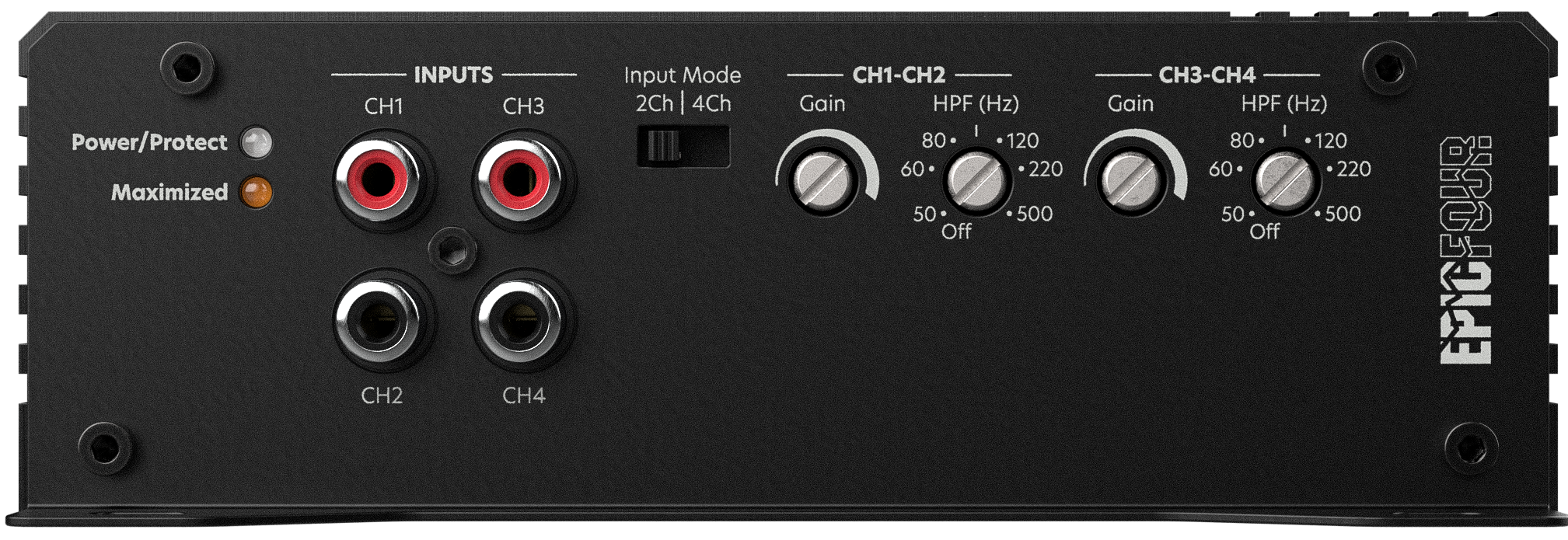

• High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz

• Speaker Terminal Wire Gauge: 8 AWG

• Smart Auto-Reset Protection Circuit

• 12 dB/octave Linkwitz-Riley Variable High Pass Filters

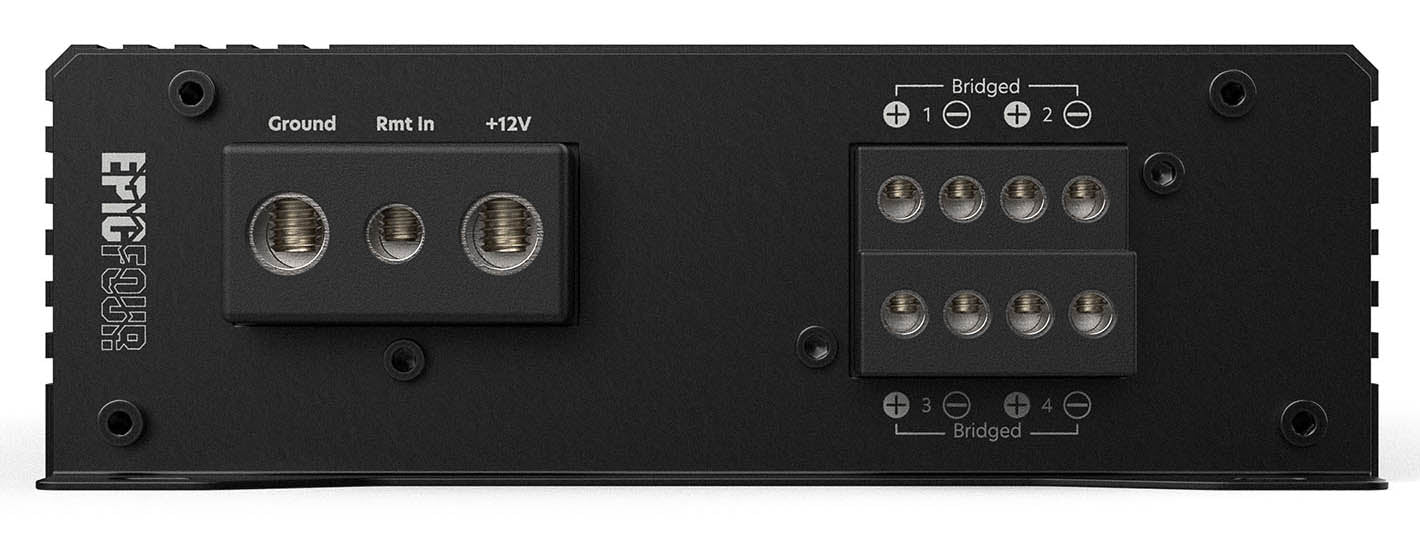

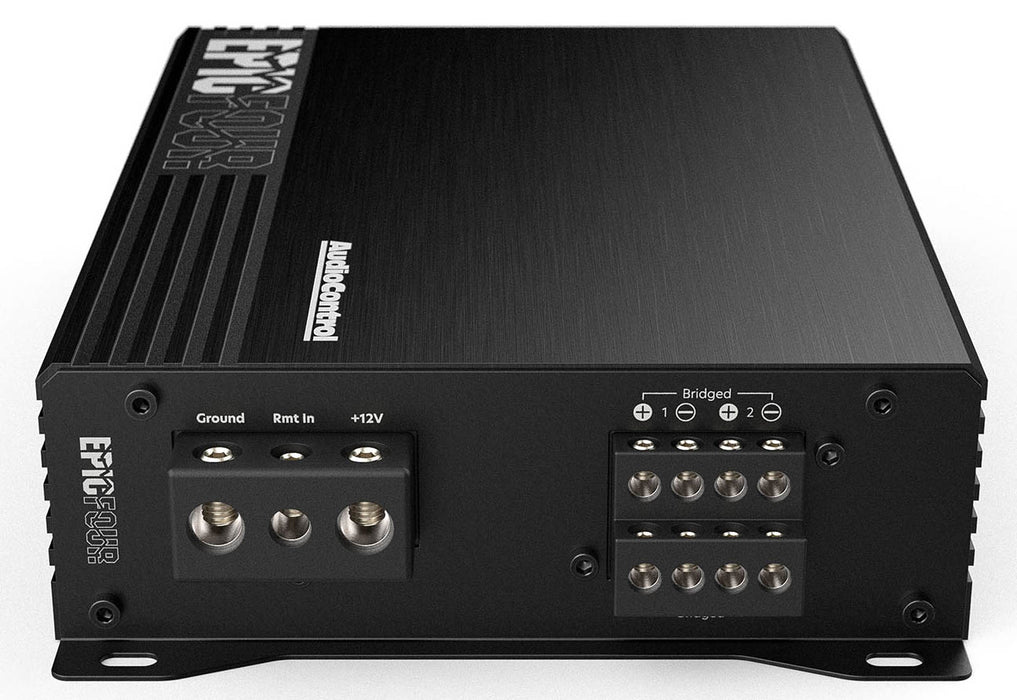

• Solid Power/Speaker Terminals with Hex Screws

• IN THE BOX: EPICFOUR, Wrench, Screws, Manual, Warranty

• DIMENSIONS: 6.1″ W x 9.41″ L x 2.01″ H
