EPICENTER-B Epicenter Concert Bass Processor

The Epicenter Concert Series Digital Bass Restoration Processor by AudioControl

Restore the earth-shaking power and heart-pounding bass your subwoofers crave.

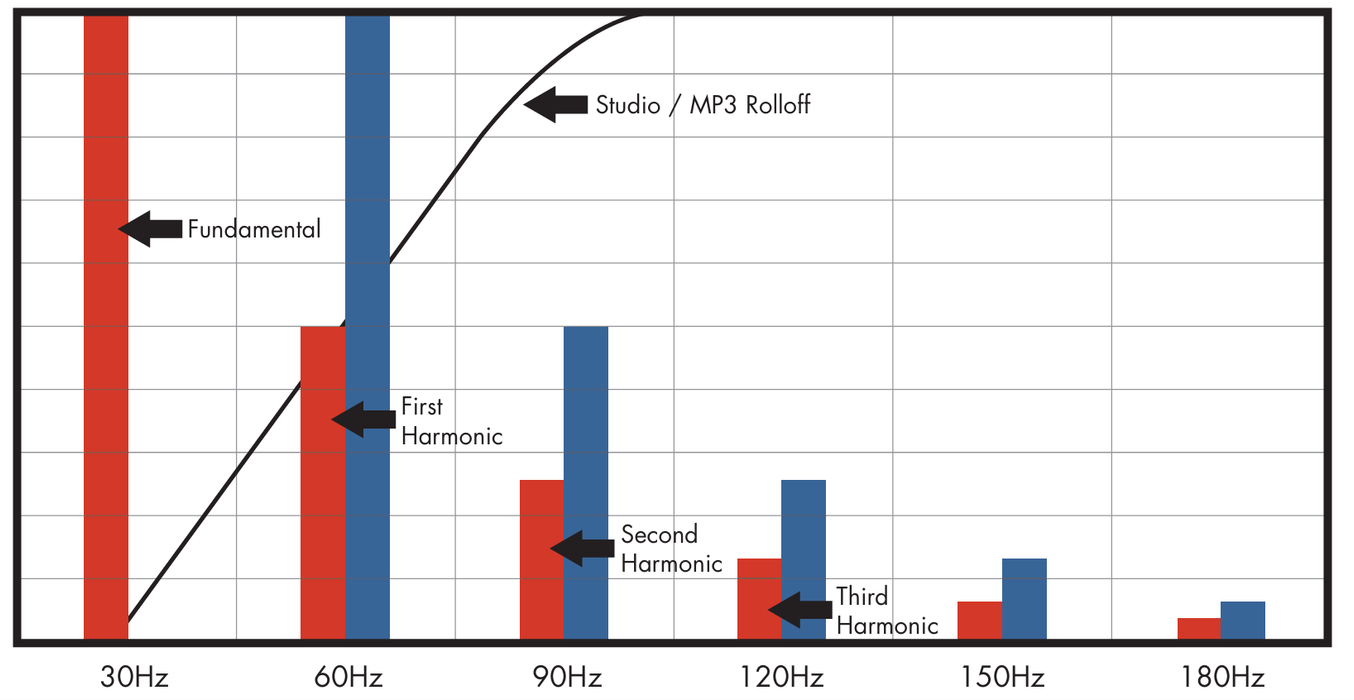

Increase bass response from your vehicle’s audio system with The Epicenter Concert Series Digital Bass Restoration Processor by AudioControl. AudioControl’s engineers changed the world of mobile audio bass forever with The Epicenter, a revolutionary Bass Restoration processor which digitally maximizes the ultra-low bass on all types of source material. The Epicenter detects bass harmonics, then digitally recreates the underlying fundamental for the incredible punch and impact of live music, reproducing heart stopping, musical, and natural sounding bass. The Epicenter’s Bass Restoration can be shaped and dialed in to suit any listening style or preference with convenient ParaBASS controls and the included ACR-1 remote can be conveniently mounted to the dash to increases or decreased the Bass Restoration.The Bass Restoration circuit inside The Epicenter is designed to reproduce low frequency information by looking at the upper frequency ranges and detecting musical harmonics. These harmonics then allow The Epicenter to drop down a few octaves and reproduce the “missing” bass notes.

• AudioControl’s Original Digital Bass Restoration Circuit

• Patented Bass Maximizer™

• Balanced Differential Inputs

• ParaBASS® Controls for Bass Shaping

• Voltage Limiter for Gain Matching

• 13.5 Vrms Maximum Output Level

• Programmable PFM Subsonic Filter Subwoofer Protection

• Lighted Epicenter Logo Flashes with Music

• ACR-1 Dash Remote Included for Bass Restoration Control

• Bass Output Control

• Bass restoration lighted display

SPECIFICATIONS

• Preamp Inputs: 1 (2 channels)
• Maximum Input Level: 15Vrms

• Input Impedance: 10kΩ

• Preamp Outputs: 1 (2 channels)

• Remote In: Connects to the ACR-1 Dash Remote

• Maximum Output Level: 13.5Vrms

• Output Impedance: 150Ω

• Total Harmonic Distortion: 0.003%

• Frequency Response: 10Hz-100kHz

• Signal to Noise: 110dB

• Power Supply: High Headroom PWM Switching

• Current Draw: 150mA

• Recommended Fuse Rating: 1A

• Color: Espresso Black
• Dimensions: 8″W x 5.5″D x 1.2″H

• Weight: 1.8 lbs (0.8 kg)

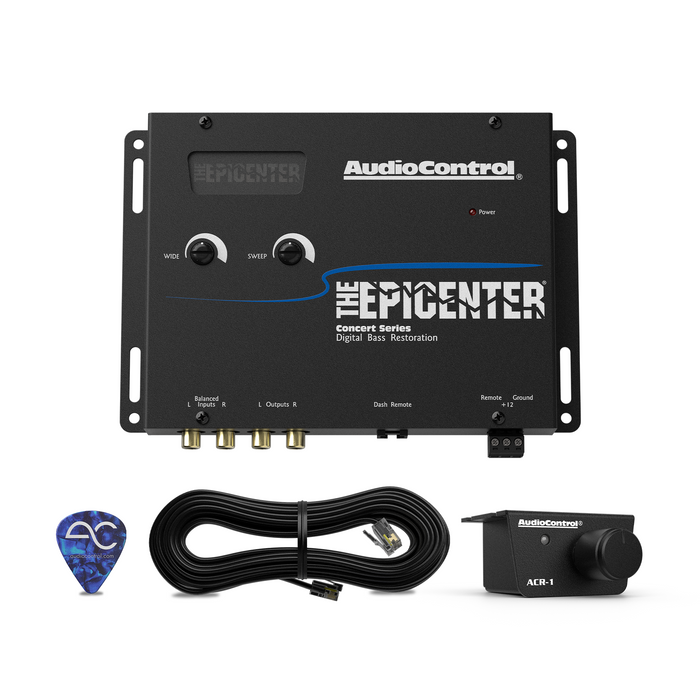

• IN THE BOX: The Epicenter, ACR-1 Remote, Power Connector, Manual, Warranty
