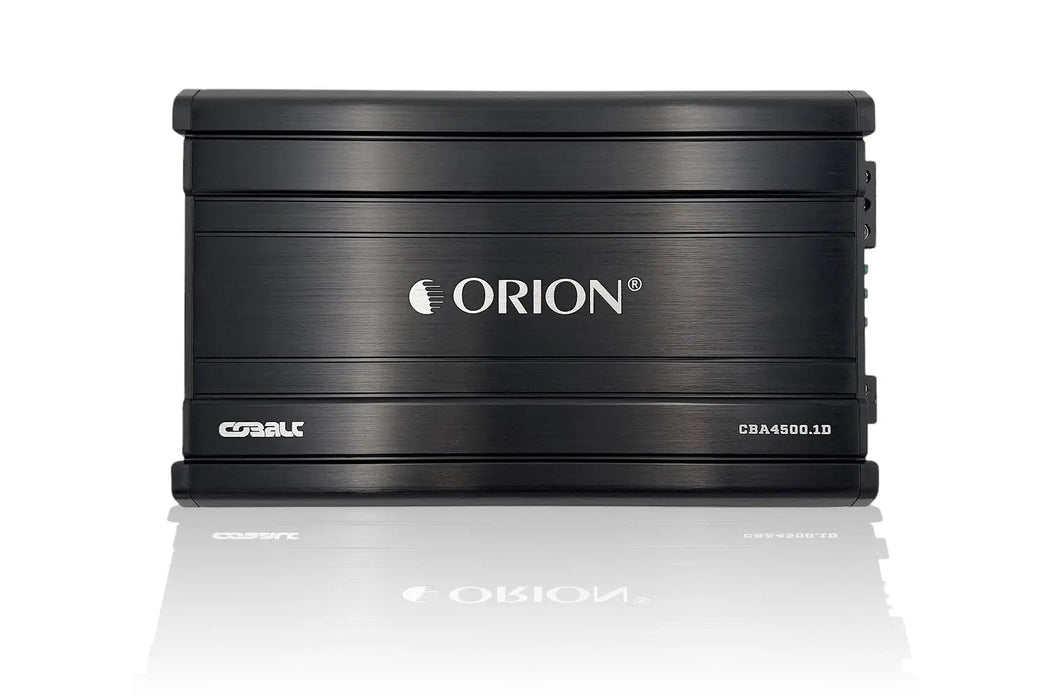

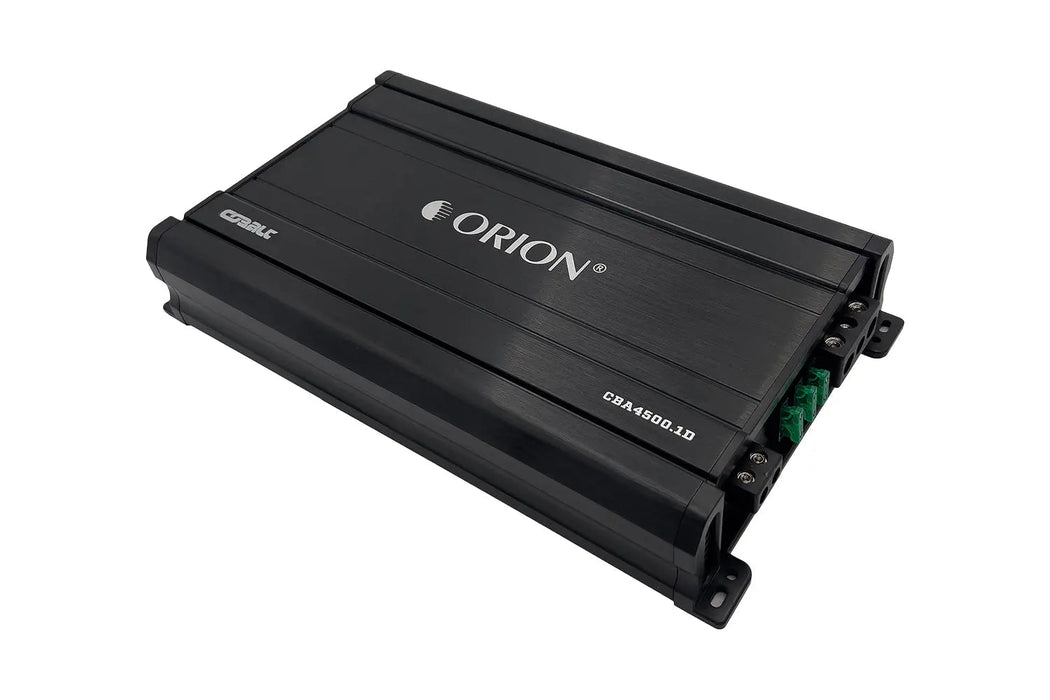

CBA4500.1D COBALT 4500 WATT CLASS D AMP

Features:

• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 1-Ohm Stable

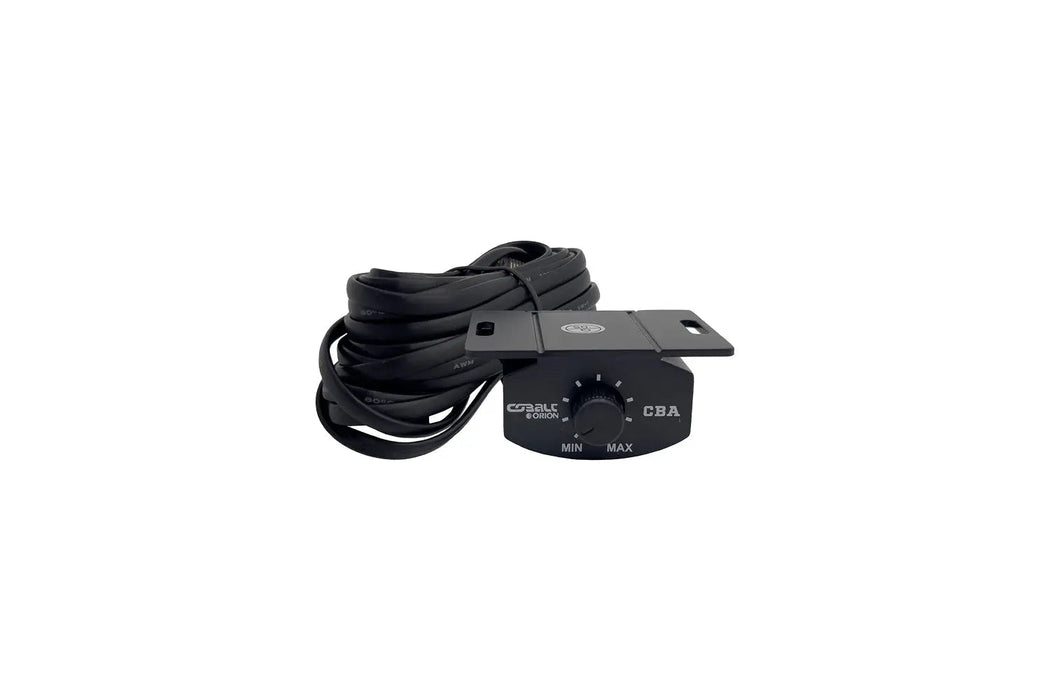

• Remote Gain Controller Included

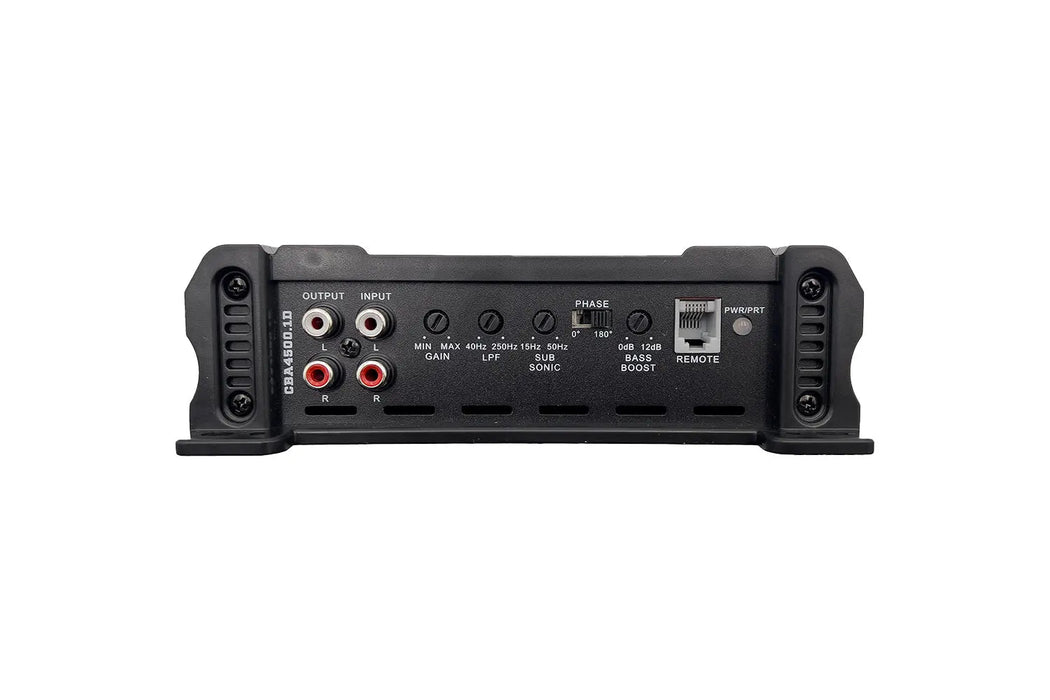

• RCA Out Throughput
• 12dB Octave Low-Pass Filter
• Electronic Crossover Network
• Bass Boost Circuit
• Intelligent Power and Protection LED Indicator
• Soft Turn-on/Turn-off Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
• RMS WATTS @ 1 Ohms: 1200W
• RMS WATTS @ 2 Ohms: 650W
• RMS WATTS @ 4 Ohms: 400W

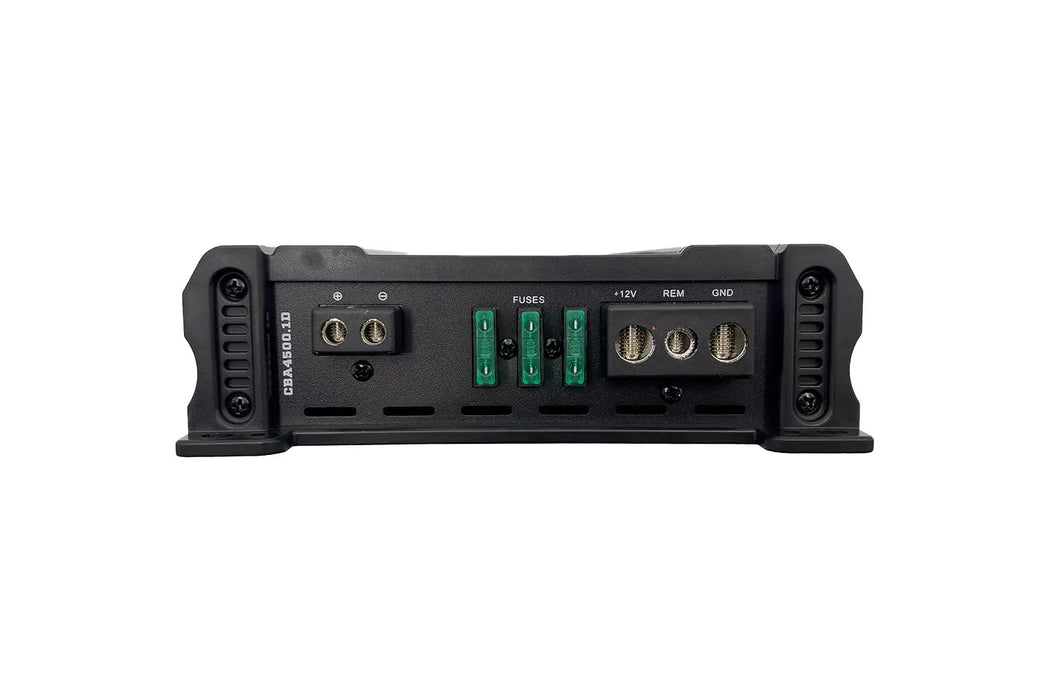

• Power Terminal Management:

  • Positive Terminals: 1 x 4 AWG.
  • Negative Terminals: 1 x 4 AWG.
  • Remote Turn-ON Signal: 10 AWG.
  • Speaker Output Terminals: 10 AWG.

  Specifications:

  • Frequency Response: 10Hz - 250Hz
  • Subsonic (15 - 50Hz)
  • Low Pass Crossover Continuously variable (40-250Hz)
  • Supply Voltage: 10 - 16V
  • Input Impedance: 22kOhm - Signal to Noise Ratio: >90dB
  • Phase Shift: 0/180 Degrees
  • Bass Boost: 0 - 12dB Variable
  • Variable Input Level Control: 0.2V - 6.0V
  • Fuses: 105A recommended (3 x 35A ATC)
  • Dimensions (L x W x H): 12.28" x 7.09" x 2.13" (312x180x54mm)
