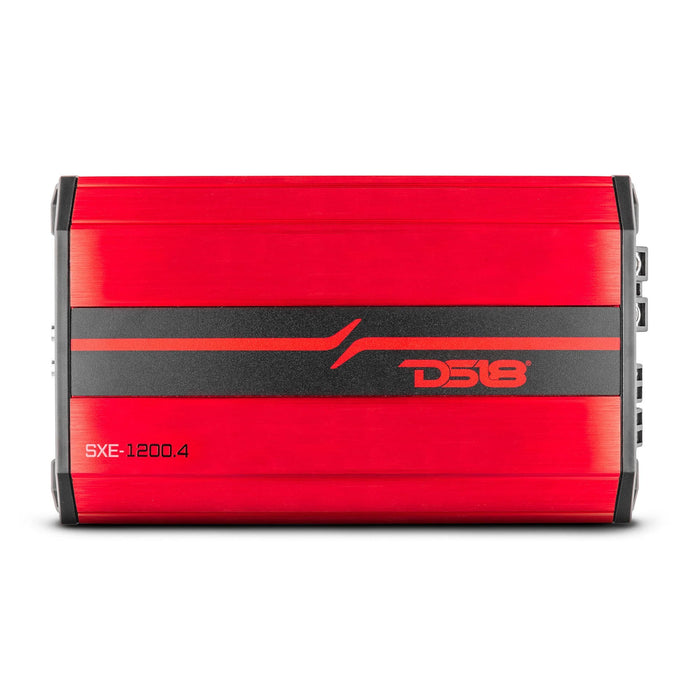

SXE-1200.4RD DS18 4 channel 60x4 Amp

SXE-1200.4D Series SXE 4-Channel Full Range Amplifier - 1200 Watts Peak / 4 x 60 Watts RMS @ 4 Ohms
Compact Size to easy Installation for Any Applications
4-Channel Full Range Amplifier
Amplifier Class Analog (Class AB)
Multiple Protection Circuits: Thermal; Over-Load Protection; DC Output Protection; Short Circuit Output Protection; Voltage Input Protection; Clipping Protection
Led Indicator for Power/Protect/Clip
2~ 4 Ohm Stable
Total Watts (Peak): 1200W
RMS Power @ 4 ohm: 4 x 60W
RMS Power @ 2 ohm: 4 x 100W
Bridged RMS Power @ 4 ohm: 2 x 200W

• Frequency Response: 10Hz-20KHz

• Signal to Noise Ratio: 90dB

• Damping Factor: 170

• Total Harmonic Distortion (THD): 0.05%

• Efficiency @ 4ohm: 64%
• Channel Separation: 45dB
• Low Level Input Range: 200mV-5V

• High Level Input: No

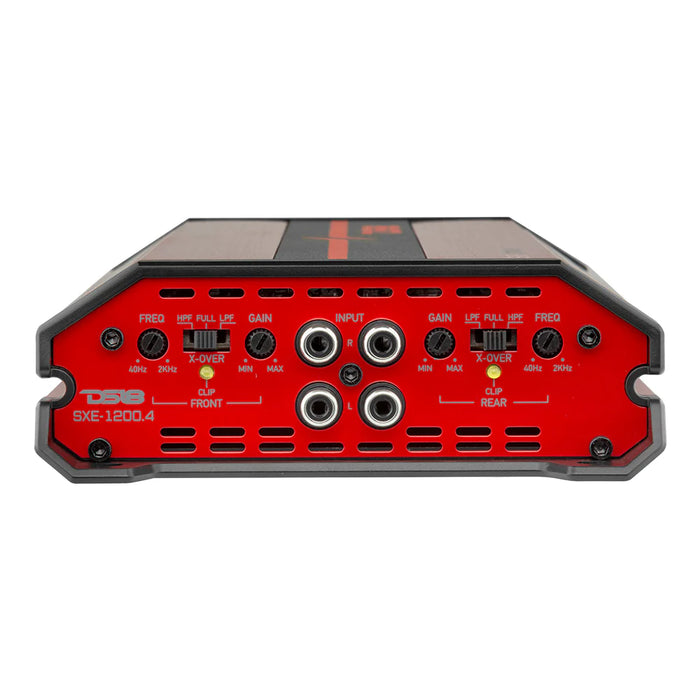

• Selectable X-Over: HPF/FULL/LPF

• X-Over Filter Range: 40HZ-2KHZ

• Minimum Impedance: 2 Ohms Unbridged, 4 Ohms Bridged

• Cooling Fan: Yes

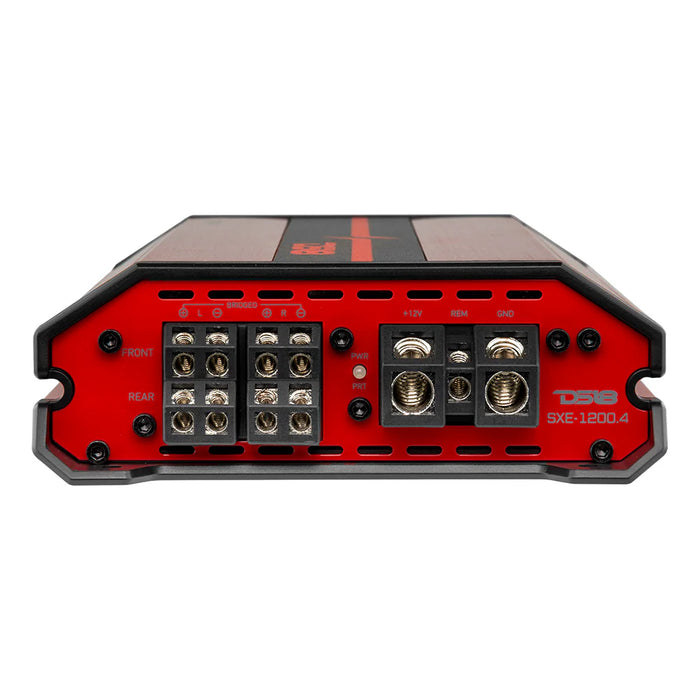

• Power Input Terminal Size: 4Ga

• Fuse Size: 2 x 25A (50A)

• Dimensions: 9.8 x 5.5 x 1.88 (Inches, LWH)
• Weight: 1.6 KG

  DS18’s SXE Amplifier Series was designed for enthusiasts looking for an extreme increase to the quality of audio reproduced by their vehicle. With the SXE-1200.4 at the helm, your vehicle's speakers will unleash their true potential, effortlessly detailing the best parts of your favorite tracks.
  The SXE-1200.4 offers you the ability to shape your systems audio to match your personal preferences. Its fully variable crossover, adjustable gain input sensitivity, and multi-channel amplifier design allows you to fine-tune your audio, ensuring every beat, melody, and lyric is reproduced with astonishing accuracy. The compact size of the SXE-1200.4 enables easy installation anywhere in your vehicle, making it a versatile companion for your custom audio setup. Immerse yourself in a customized soundstage that complements your unique style.
  Thanks to its Class A/B amplifier design the SXE-1200.4 seamlessly integrates into any vehicle's custom build, without compromising on its power. Prepare to be blown away by the SXE-1200.4's staggering performance, delivering 200W x 2 CH bridged at 4-ohms, 100W x 4 CH at 2-ohms, and 60W x 4 CH at 4-ohms. These power settings are guaranteed to supercharge any custom build, leaving you with a smile that stretches from ear to ear.
  The SXE-1200.4 also comes equipped with various forms of electronic protection, including thermal protection that shields against overheating, over-load protection, and short circuit output protection. Additionally, the 80℃ thermal protection ensures the amplifier operates optimally, even in demanding conditions. DS18 has meticulously thought of everything to guarantee a long-lasting and exceptional audio experience.
